kids moto bikes/unique children bicycle/small bmx bike for kids

Short Description:

CONTACT NOW down load to pdf

Details

Tags

Quick Details

Type:: Kids’ Bike

Wheel Size:: 16″

Frame Material:: Steel

Fork Material:: Steel

Rim Material:: Steel

Training Wheels:: Yes

Net Weight:: 12KG

Brand Name:

Model Number:: CT-67

Place of Origin:: Hebei, China

Tire:: Air Tyre

Size:: 12 14 16 18 20

Grip:: PP

Certificate:: EN71

Pedal:: Plastic Pedal

Packaging & Delivery

Selling Units:: Single item

Single package size:: 108X18X60 cm

Single gross weight:: 13.000 kg

Package Type:: 1pc/carton,or custom package

Lead Time :

Quantity(Pieces)	1 – 420	421 – 900	>900
Est. Time(days)	30	45	To be negotiated

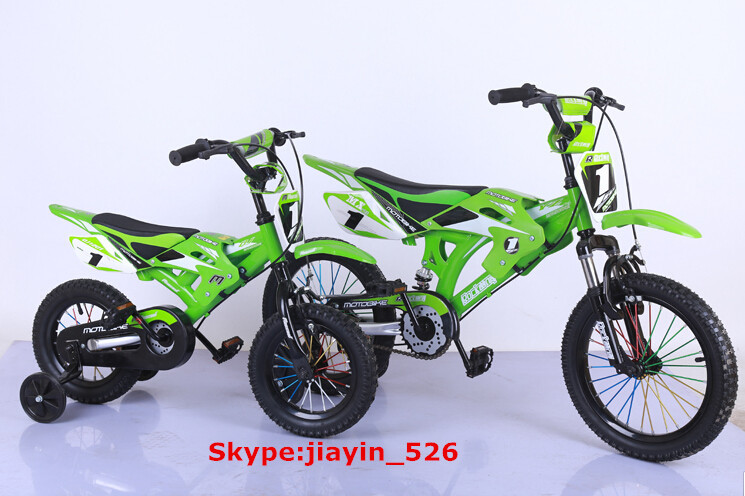

kids moto bikes/unique children bicycle/small bmx bike for kids

1.Steel Frame
2.Motor design
3.competitive price
4.with training wheels

· Premium grade kid’s bike made for boys and girls with top of the line safety. As the winner of 2018 iF Design Award, the 14 inch kids bike is easy to operate and comfortable to ride for children 3-6 years old with the height of 2’11” – 3’11”.

· Double Protection: The coaster brake works on rear wheel, the V-brake works on the front. Compared with other kids bike, V-brake has good braking performance and reliability. Fully-enclosed bicycle chain can protects little ones from potential scratches.

· Safe & Comfortable Riding: The pneumatic tires, environmental friendly material, durable, shock absorption and suitable for complex terrain. Ergonomic and adjustable saddle, comfortable for ride. Full Coverage with Soft Silicone for child safety.

· Light weight & portable: Aerospace grade aluminum alloy frame with discreet PU form makes the our Kids Bike sturdy, light weight and portable.Streamline and minimalist design with adult bicycle craftsmanship process for top quality kids bike.

· Design for Young Rider: The design of the bike is based on children’s ergonomics. Larger training wheel makes it significantly easier to roll over obstacles and bumps. Easy to assemble and please take the kids height into consideration.

· Brake Style: Front: V brake; Rear: coaster brake.

Product Description

#	Parts	Description	Part #	Color
1	FRAME	16″X13″ STEEL NON-SUSPENSION PULSE-WELDED,W/EN14765 STD	C21SZ18SJ	1.TC-6413 GREEN 2.YS-7416 ORANGE 3.YS-7490 BLUE
2	SHOCK	NIL
3	FORK	16″ #800 TYPE ,STEEL 31.8D BLADE, PULSE-WELDED,W/EN14765 STD	XC21CS18	1 & 2. YS-728 BK 3.YS-701 WH
4	FORK DUST COVER		N/L
5	FORK CAP	NIL
6	HANDLE BAR	STEEL, 520WX1.4TX60RX6DG, W/O CROSS BAR, W/EN14765 STD	HB-MC52002	ED BLACK
7	STEM	Y-TYPE, STEEL POST:22.2X1.6TX150L, W/MINI. INSERTION MARK,W/ EN14765 STD	HS-A01A1	ED BLACK
8	HEAD PARTS	STEEL, 8 PCS, KEY WASHER:3T, 22.2x30x27mm	XR-H1/H2	BLACK
9	GRIPS	TPR R/L 100MM	KW-K29	BLACK
10	F/BRAKE	CALIPER-BRAKE, STEEL 3.5T 2PCS AW SHOE	1000S	BLACK
11	R/FRAKE	NIL
12	BRAKE LEVER	ONLY LEFT OR RIGHT, STEEL BODY PP LEVER W/ADJ.	B212P	BLACK
13	BRAKE CABLES	ONLT FRONT	2P	BLACK
14	FRONT HUB	STEEL, 14Gx28Hx3/8″x85Wx120L, 3/8″AXLE, W/NUT	WR-801F2(HF-11)	ED/BK
15	REAR COASTER	STEEL, 14Gx28HX111Wx164L, 5/16″ AXLE, W/16T SPROCKET W/NUT	CF-E08	ED/BK
16	SPOKE	STEEL, 14GX28H W/12MM STEEL CP NIPPLE		UCP/CP
17	RIM	F/R 16″ STEEL 14GX28H, 1.05T	HB-2(7x)	ED-BK
18	TIRE	F/R 16″X1.95″	J-1001	BLACK
19	TUBE	F/R 16″x1.95″, A/V		BLACK
20	RIM STRIP	F/R 16X20MM		BLACK
21	CHAIN WHEEL	STEEL SOLID TYPE, 1/2×1/8″X28T	YL-502	ED-BLACK
22	CRANK	STEEL, 4-1/2″ W/O PIN, COLD-FORGE	YL-603	ED BLACK
23	CHAIN COVER	FOR 16″, PLASTIC FULLY TYPE 3 PCS	SM-C16	BLACK
24	B.B. PARTS	STEEL, 10-PCS MEDIUM BB SHELL	YL-702	UCP
25	CHAIN	STEEL, 1/2×1/8X68L	C410	GY/PS
26	PEDAL	PP BODY, 1/2″AXLE, W/BS REF & WARNING STICKER (R&L) W/BALL BEARING	PJ-462	BLACK
27	FREEWHEEL	NIL
28	T/WHEEL	PLASTIC, 5″	ZS-1004	BK/BK
29	T/WHEEL BRACKET	STEEL, 90DG REINFORCE, W/EN14765 STD	TWK-C01	1 & 2. YS-728 BK 3.YS-701 WH
30	T/WHEEL BOLT	STEEL, M8X37L		UCP
31	KICKSTAND	NIL
32	WING	R/L PP	MOP16-01/02	BK
33	F/FENDER	PP	MOP16-03	BK
34	TANK	PP	MOP16-04	BK
36	SADDLE BASE	PP	MOP16-05	BLACK
38	SADDLE LOWER BASE	PP	MOP16-06	BK
39	NUMBER PLATE	PP	MOP16-07	BK
35	SADDLE	#4 NON-SLIP TOP W/O LOGO		BLACK
37	SADDLE
40	MOULD AMORIZATION
41	TANK BRACKET	STEEL	MOS16-01A/01B	ED-BK
42	SADDLE BRACKET	NIL
43	NUMBER PLATE BRACKET	STEEL	MOS1620-03A	ED-BK
44	REFLECTOR	4PCS ECE STANDERED SL-121C/R SL-722A		WH/RED/YELLOW
45	REF BRACKET	XPJ3-53/MO-BK01		BK
46	PAD	PVC,1PCS FOR STEM		COLOR
47	BOLTS	STEEL		BK
48	DECAL	REGULAR STICKER, AS PER CUSTOMER DESIGN
49	DECAL
50	MANUAL	AS PER CUSTOMER DESIGN
51	PACKING MATERIAL	SKD, 95% FACTORY ASSEMBLY
52	CARTON	5-PLY EXPORT CARTON, W/PRINTING		BROWN
53	PARTS BOX	3-PLY		BROWN
54	PAINTING	REGULAR PAINTING
